Atlas Copco Compressor
ATLAS COPCO
Atlas Copco compressors are widely used in Oil & Gas, Compressors for utility vehicles, Mining, Mobile air compressors for construction.
unique experience LLC is a leading exporter and supplier in UAE, Dubai & Sharjah and specializes in Atlas Copco engine spare parts both genuine & OEM brands
Atlas Copco compressors used in Industries like Automotive, Cement, Chemical & Petrochemical, LNG industry, Medical & Healthcare, Power Generation, Railway etc.
unique experience LLC stock and supply all Atlas Copco engine spare parts for Deutz,Cummins,Kubota, Caterpillar etc.
ATLAS COPCO CONSTRUCTION
Atlas Copco compressors are mainly sued in construction for sand blasting, Geothermal Drilling, Renovation and maintenance, Ground engineering drilling, Water well drilling, Tunneling, Metro & Highway construction.
In Oil & Gas offers compact and reliable solutions: high pressure boosters boosting air or nitrogen up to 350 bar, remote controlling capabilities and best in class fuel efficiency. Exploration drilling, Pipeline testing and cleaning, Pigging etc.
Whether in quarries or underground applications, Atlas Copco have a wide range of compressors with high flow and pressure ranges. Especially for underground applications, minimize ventilation costs by selecting one of our electric driven mobile compressors.
ATLAS COPCO OIL & GAS
Atlas Copco compressors are mainly used in upstream, midstream & downstream Offshore and Onshore industry. Compressors ranging from 10-35 bar are more robust and developed a simple, intuitive interface. The compressors are specially designed to run a full shift without the need to refuel. Less fuel is consumed, which saves time and money, contributing to a low total cost of operations. These are equipped with high performance CAT 4.4 engines. Kubota V2403-CR-T-E5B also used in this type of compressors.
unique experience LLC is a leading exporter and supplier in UAE, Dubai & Sharjah, specializing in Atlas Copco compressors and spare parts.

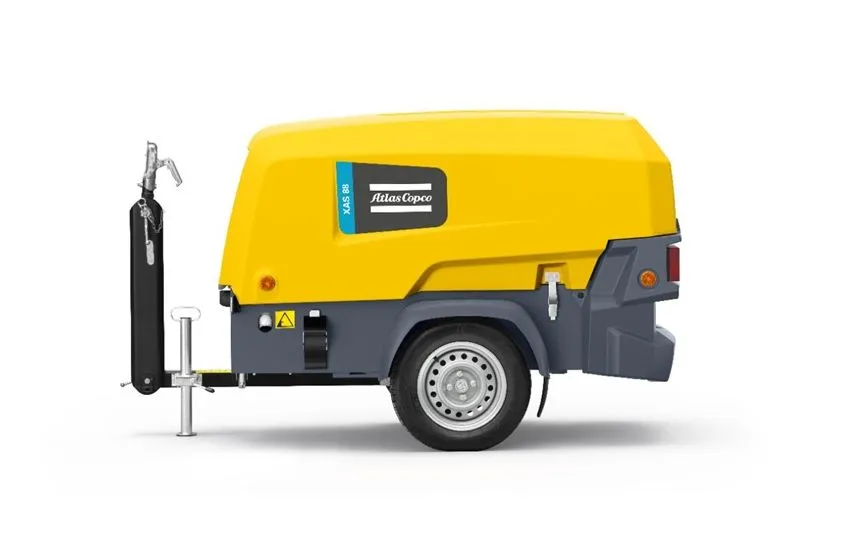

ATLAS COPCO 8 SERIES AIR COMPRESSOR
Max Free air delivery range is 70 cfm to 125 cfm Max pressure range is 100 Psi to 175 Psi Engines equipped with these compressors are KUBOTA D905, V1505 & D722 The 8 Series compressor range is the result of over a decade of continuous development from Atlas Copco. For the first time, it’s possible to transport behind a normal passenger car, with no special driving license, a compressor that can produce up to 5 m3/min of air, with a full size fuel tank, aftercooler and generator all incorporated into a compact and lightweight package. This is all made possible by the latest development in air element design, These can produce a compressor up to 150 kg lighter than comparable models. However, we understand that this means nothing without efficiency. Efficiency can mean many things, such as reduced service time,fuel consumption or increased utilization. The 8 Series ticks all the boxes when it comes to delivering outstanding performance in all of these categories.

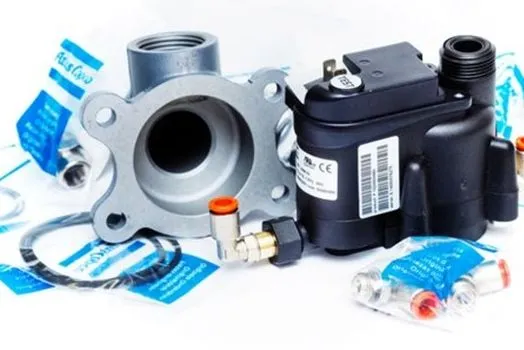

ATLAS COPCO SPARE PARTS
ATLAS COPCO SPARE PARTS

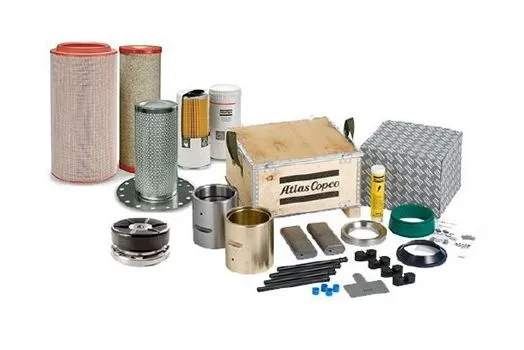

ATLAS COPCO SPARE PARTS

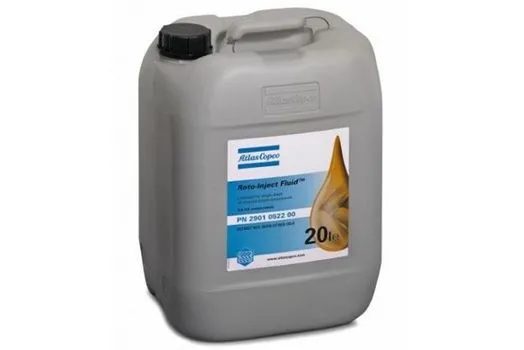

ATLAS COPCO COMPRESSOR OIL

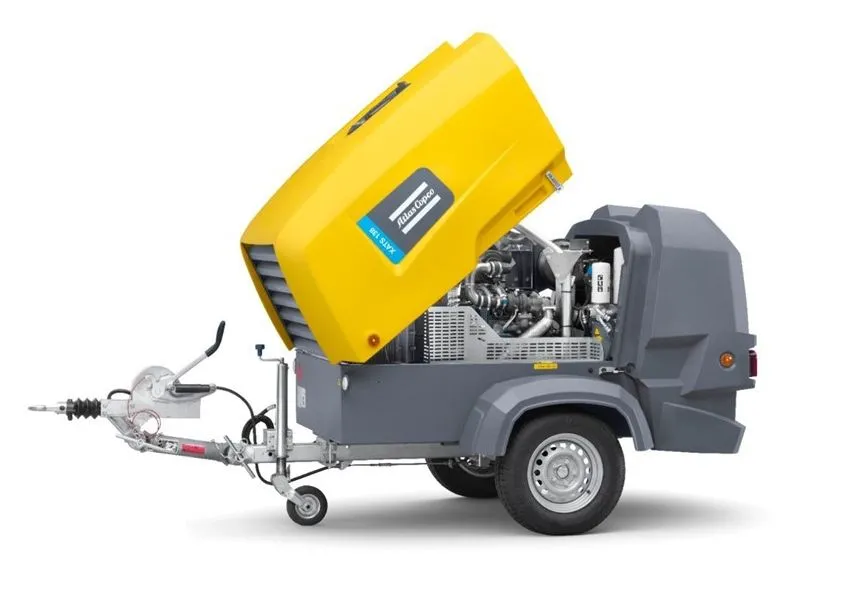

ATLAS COPCO XAS 135 XAHS 108 AIR COMPRESSOR XAS 138-XAHS 108 (5-7 m³/min (188-237 cfm) / 7-12 bar (100-175 psi))
XAS 138 model compressor free air flow range is 241 cfm and max pressure is 100 Psi and XAHS 108 model compressor free air delivery is 186 cfm and max pressure 175 Psi.
These two models are equipped with power KUBOTA V2403-M-DI-T-E2B engine. • Hard Hat PE canopy, indestructible reliability • 110% containment spillage-free frame • 3-layer corrosion protection (Cat C3) • Easy to service, with spin-on filters and oil separators • Single axle for manoeuvrability

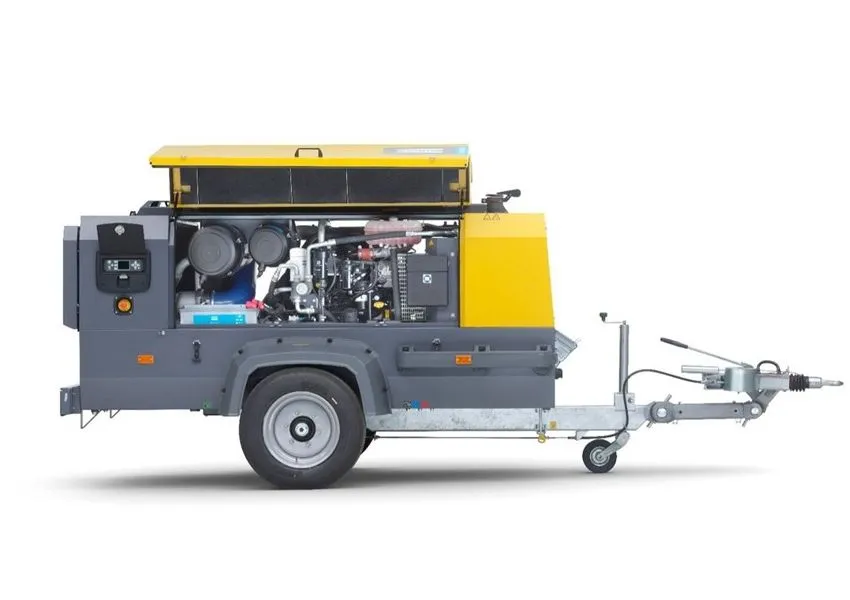

ATLAS COPCO XATS 288 – XAVS 238 AIR COMPRESSOR XATS 288 – XAVS 238 (12.2-16.6 m³/min (430-587 cfm) / 7-14 bar (100-200 psi))
XATS 288 has a free air flow delivery of 508 to 587 cfm and max pressure range is 100 to 150 Psi
XAVS 238 has a free air flow delivery of 430 to 523 cfm and max pressure range is 100 to 200 Psi
This range is powered by a 4-cylinder John Deere 4045 Engine, by a power output of 129 kW. It is a Stage III A engine with lower emission and high efficiency. This compressor range was tested both in lab and field conditions to ensure optimal performance. It’s designed to withstand the toughest working conditions. A three-layer protection coating of all bodywork under corrosive category C3 prevents corrosion and improves life time. Combining the Atlas Copco screw element with a John Deere diesel engine delivers a range that is best in class in terms of fuel economy
• Efficient John Deere 4-cylinder engine for excellent performances
• Single axle, lightweight design
• 1000-hour service interval
• 110% containment spillage-free-frame
• 3-layer corrosion protection (Cat. C3)
• Large, gull-wing doors for easy service

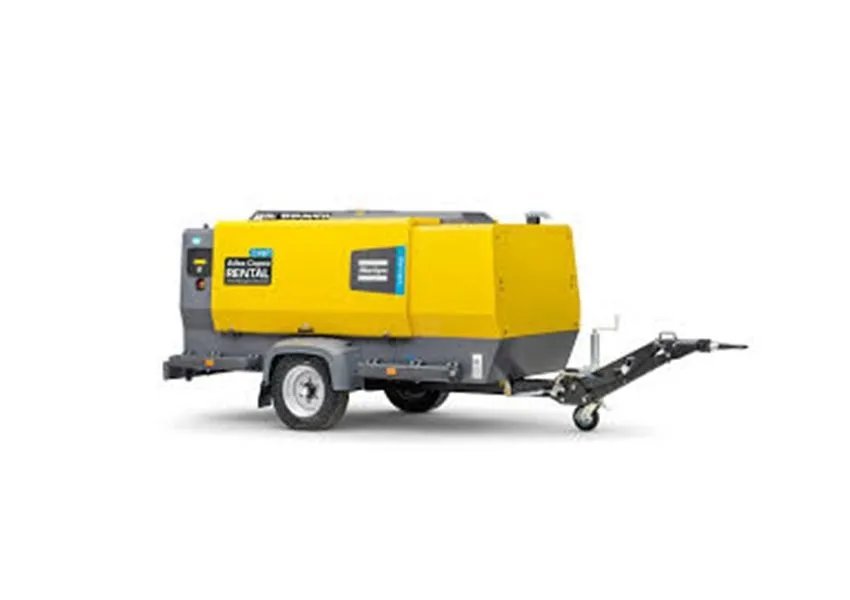

ATLAS COPCO XAVS 378 XAHS 408 AIR COMPRESSOR XAVS 378 and XAHS 408 (19-24 m³/min (672-847 cfm) / 7-14 bar (100-200 psi))
ATLAS COPCO XAVS 378 has a free air flow delivery of 778 to 672cfm and max pressure range is 100 to 200 Psi
XAHS 408 has a free air flow delivery of 847 to 735 cfm and max pressure range is 100 to 175 Psi
These compressors are equipped with CUMMINS B6.7 stage II
The XAHS 408 and XAVS 378 will boost your productivity in applications like marble quarry drilling, sandblasting, blast hole drilling, ground engineering drilling and many more. With up to 24 m3/min free air delivery at 8.6 bar, this compact compressor (full option still under 3500 kg) is your perfect partner.
The Atlas Copco screw element increases the free air delivery; making these compressors up to 6% more efficient with regards to comparable models. Compressor-oil service interval is extended up to 1000 hours or once every two years. Reduced service intervention and longer life of consumables reduces total cost of operation and increases availability. Simple vessel cover for changing the oil separate oil element within one hour.
• ECO-mode – 50% fuel savings when your compressor is in idle mode
• Robust design, with C3 certified corrosion-resistant canopy
• Weight below 3500kg, adjustable tow bar that can be operated by one person
• PACE allowing you to digitally adjust the pressure in the controller
